As a container for nucleic acid detection, there is a huge amount of consumption every day in the world. How to produce with high efficiency and high quality is a difficult problem for medical products enterprises. Green Vitality Industry Co.,Ltd is committed to solving the bottleneck of production with efficient and stable medical test tube mould and improving the return on investment of enterprises.
Our advantages of test tube mould:
1. Long mold life, greatly higher than the low-end mold.
2. More cost-effective. The test tube mould is improved and optimized by the R&D team, with high technical content and good cost control.
3. Return on investment is higher. The customer's input and output ratio of nucleic acid test tube mold is several times higher than that of low-end mold.
4. Product quality is stable. S136 steel imported from Sweden is selected to manufacture, and advanced heat treatment and surface treatment technology is adopted to ensure the durability of the mould in the environment of high speed and high pressure injection. Before mold production, mold flow analysis was used to analyze the forming defects of products, and then the mold structure was adjusted to improve the one-time pass rate of products.
5. Cavity core with self-locking structure, the same parts in the mold can be interchangeable; Reasonable cooling channel design, strengthen the cooling effect of the mold, effectively shorten the injection cycle.

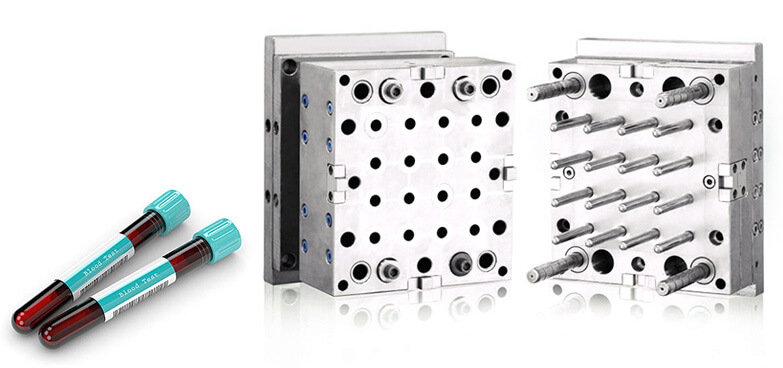

| Introduction of test tube mould case： |
| Tube specification ：Φ12.5*75/ Φ12.5*100/Φ13*100 |
| plastic material：PP、PS, PET、PE |
| Cavity No.：12-64 cav. |
| Mould size：660*500*478mm（32 cavities） |
| Injection molding machine：DKM-200HH 、DKM-300HH、DKM-400HH |
| Mold steel：S136 |
| Ejection system：Needle valve gate |
| Ejector system：stripper |
| Molding cycle：8-18s |
| Mold life：Min 5 million |
| Product features: the surface of the product is highly transparent, no dent, high control precision, no eccentricity; Excellent cooling system, reduce molding cycle. |
A customerof usused our 32-cavity test tube mold, combined with dKM-250EH high-precision injection molding machine to produce 5cc with 2.75g test tube, 8 seconds cycle, about 340,000 pieces can be produced in 24 hours without stopping.
In addition,Green Vitality Industry Co., Ltd provides different materials, specifications, shapes of injection mold solutions, sincerely looking forward to your inquiry.
